Producto de prueba 1
$100.00
| Weight | 1 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
Recommended Monitors & TVs
Disclosure: This page may contain affiliate links, meaning we get a commission if you decide to make a purchase through our links, at no cost to you.
Cabinet fits most 32" standard VESA mount flat screen monitors/TVs. We recommend purchasing a display where the ports are located on the side or bottom as opposed to the back of the display for easier installation.
We include four 30mm M4 screws/washers. If your monitor/TV requires different length screws, you will have to source them from your local hardware store.
If your ports are on the back, you will need longer screws and nylon spacers to create a gap for your cables between the back of your display and the mount. You will also need a 90 degree HDMI or DisplayPort adapter. You can find these products here:
Nylon Spacers:
https://a.co/d/9nxambm
M4 x 55mm Screws:
https://a.co/d/5xUbaYS
90 Degree HDMI Adapter:
https://a.co/d/dec8Cam
90 Degree DisplayPort Adapter:
https://a.co/d/dpMX8ZO
Recommended Speakers
Logitech Multimedia 2.1 Speakers Z213
This is a good choice for simple set up as all necessary parts are included (plus you also get a subwoofer). You can use any similar computer speakers, it doesn't necessarily have to be this exact model.
You can simply place these in the marquee area and leave them loose or you can secure them with velcro or some other method if you like.
BOSS Audio Systems BRS40 50 Watt, 4 Inch Speakers
These speakers are an exact fit for the holes in the speaker panel. They will screw into the pre-drilled pilot holes on the back of the speaker panel (this should also apply to any other 4" speakers).
BOSS Audio Systems BRS52 60 Watt, 5.25 Inch Speakers
These speakers will also fit although they overlap the speaker holes a bit. They will not align with the pre-drilled pilot holes for the screws so you will have to drill your own holes for the four corner mounting screws.
NOTE: you will need a small amp such as this one and speaker wire to go along with the speakers above.
Pinball Side Buttons:
Pinball Side Buttons (this option is not available with the “Tankstick Edition” cabinet):
ABOUT: When you order the pinball buttons, your controller will include the extra wires needed to install the buttons already attached. You will need to plug the wires into the buttons and screw the pinball button housings shown in the image below to the sides of the cabinet. See video at the following link for easy-to-follow instructions: https://youtu.be/mR_6odbhj_Q
Coin Door:
ABOUT: Choose between single slot, double slot or blank metal door. When you order a single slot or double slot coin door, your controller will include the extra wires needed for installation already attached. You will need to plug the wires into the coin door microswitches. See video at the following link for easy-to-follow instructions: https://youtu.be/XA72Qzw6iVA
Please be aware that when ordering this add-on with the “Tankstick Edition” cabinet, you will be responsible for installing the wiring and we are not able to assist you in that process nor are we responsible if you cause any damage to your Tankstick.
Amp/Speakers:
ABOUT: Includes two 4" speakers, two speaker grills with Rec Room Masters logo, amplifier, speaker wire and power adapter.
Speaker specs:
4 inch coaxial speaker
Sensitivity - 91DB/M.W
Frequency response range: 80HZ-20KHZ
Impedance: 4Ω
Rated power: 40W
Amp specs:
2.1 Channel
200W Output (Dual 50W + 100W Subwoofer)
Frequency response range: 80HZ-20KHZ
Subwoofer Frequency & Volume Controls
Main Volume, Treble & Bass Controls
Stock Artwork:
ABOUT: These “stock” controller and marquee graphics are included with each cabinet free of charge. Choose between one of the four options. Please be aware that the images below are for color reference only and may not depict the controller you’re shopping for. The “Tankstick Edition” cabinet does not include any artwork for the platform or Tankstick itself.
Stock Artwork Color Choices:

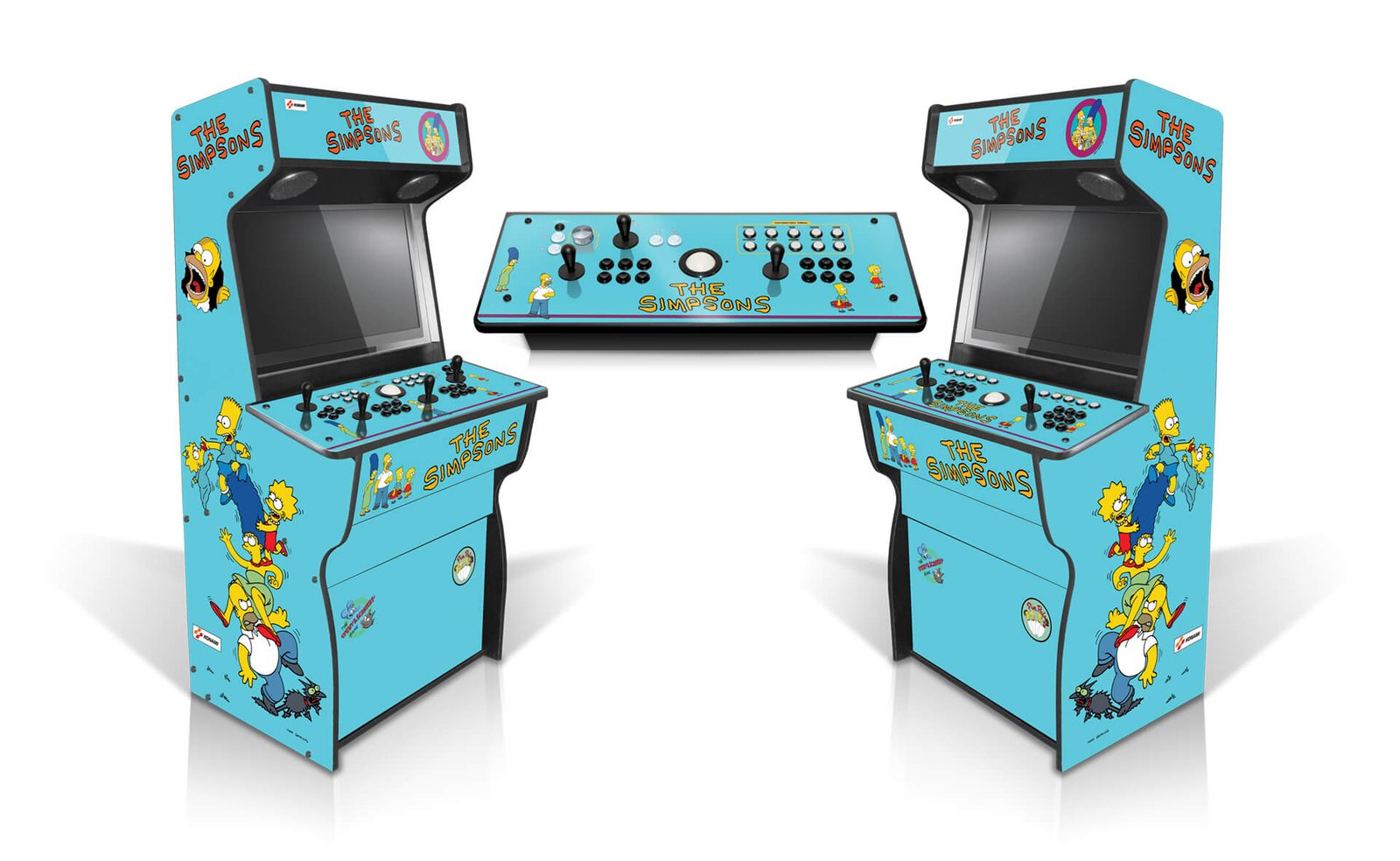

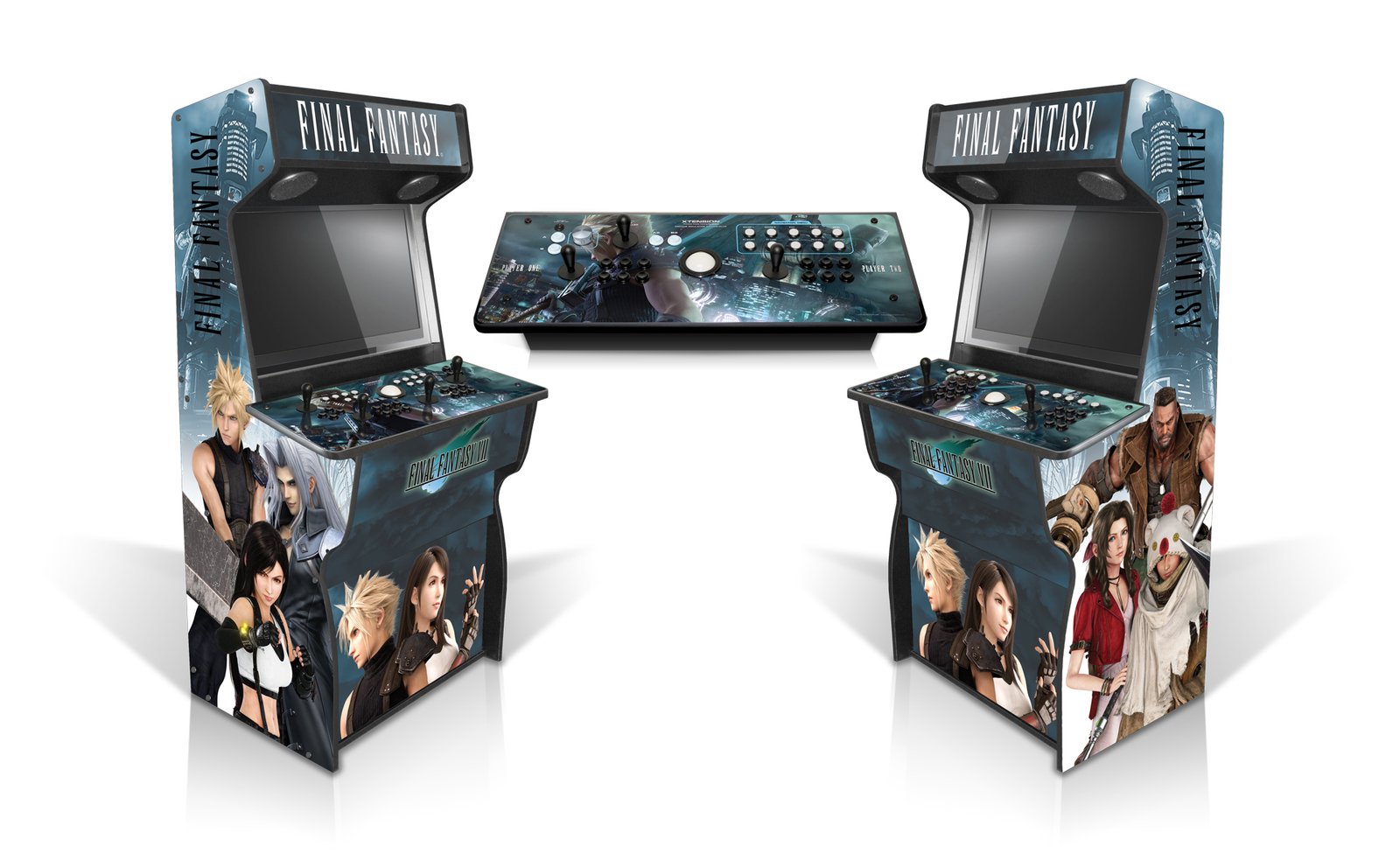

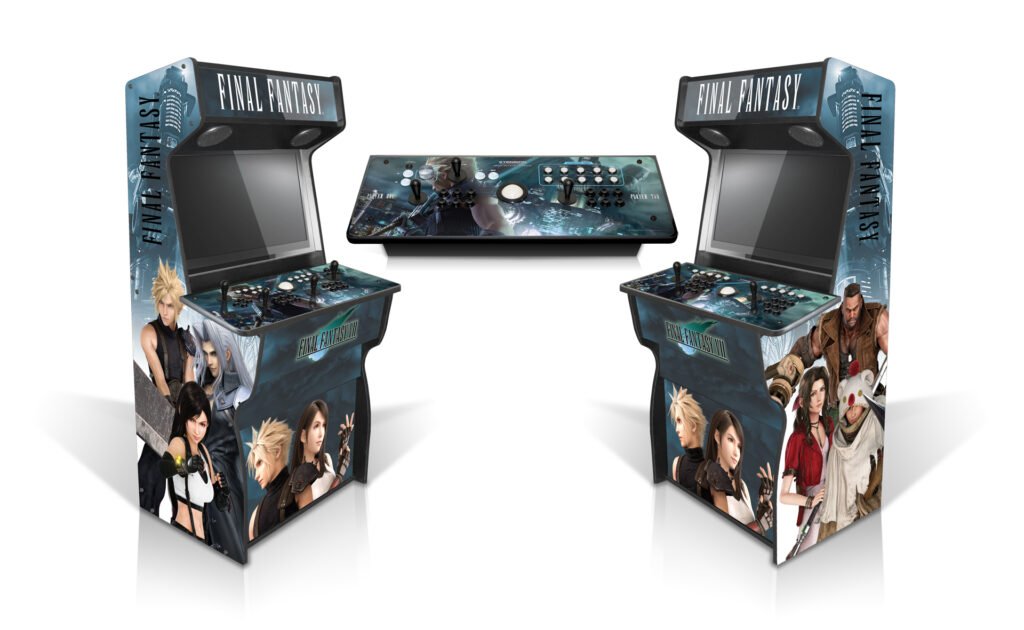

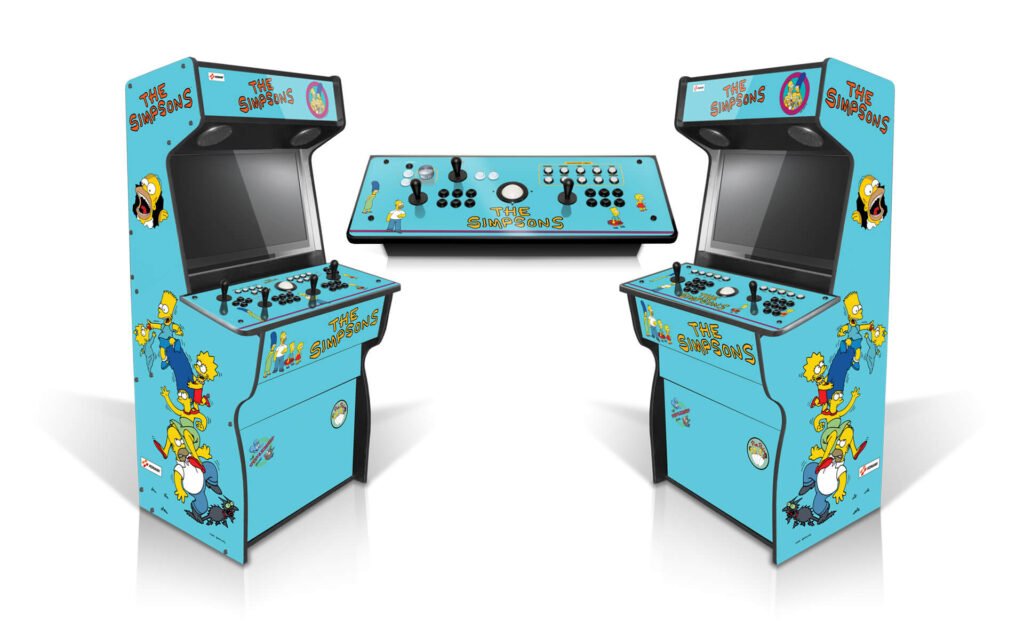

Full Artwork Wraps:
ABOUT: These designs will be printed on adhesive vinyl and shipped in a tube. Only the controller artwork will be pre-applied for you. You are responsible for applying the artwork to the side and front panels. See video at the following link for easy-to-follow instructions: click here
Please be aware that the images below are for design reference only and may not depict the cabinet/controller you’re shopping for. The “Tankstick Edition” cabinet does not include any artwork for the platform or Tankstick itself.
Cabinet Dimensions
| Depth (in) | Width (in) | Height (in) |
| 27" | 36 1/4" | 69 3/8" |
Shipping
We Ship UPS Ground, No More Expensive Freight Fees! NOTE: This Item Currently Only Ships Within the United States and Canada.
Purchase With Confidence
Since our cabinets are furniture-based products, unfortunately, transit damage through any shipping carrier can occur from time to time. Although this rarely happens, it is at times unavoidable. If you unfortunately experience any form of damage upon unpacking your cabinet, we will immediately issue a return label and ship you a replacement leaving you no burden of replacing parts whatsoever. Requested transit damage always takes top priority to avoid any further delays in your arcade enjoyment.
